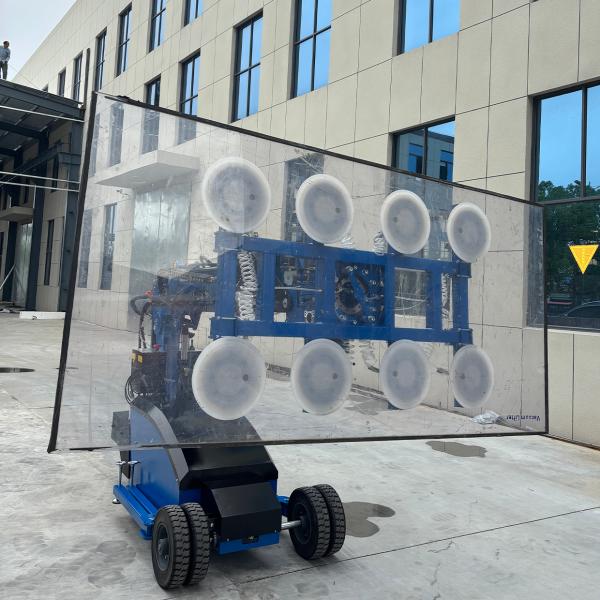

KAD 600kg 800kg Electric Glass Installation Suction Cup Car Robot Lift with CE Certificate
Our glass robotic arm is an ideal way to make the production process and transportation easier. Whether you want to transport steel, glass components, stones, or wood, you will find the perfect solution here. To ensure safety, equipped with vacuum alarm, charging protection, automatic braking, emergency stop, counterweight, support legs, etc. Also known as glass lifter, vacuum glass lifter robot, robot glazing tool, electric suction cup car, etc.
advantage:
1.Front Axle driven, rough terrain wheels can walk on bad situation road.
2.Strong power, steady lifting and lowering
3.Dual Vacuum System. One for normal operation and the other as spare system
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
| Model | / | GL600/800 |
| Driving mode | / | Front Axle Drive |
| Max.Load | kg | 600 /800 |
| Rotating | ° | Manual 360° (Automatic type for optional) |
| Turn to side | ° | Manual 90° (Automatic type for optional) |
| Lifting Height | mm | 3700 /4500/ 5000 |
| Manipulation | / | Walkie Type |
| Power | / | Tractive-type Free Maintence Battery |
| Controling type | / | Stepless adjusting speed |
| Battery | V/Ah | 2*12/120 |
| Charger | V/A | 24/18 |
| Climbing gradient | % | 15 |
| Braking type | / | Electromagnetic braking |
| Driving Motor | V/W | 24/2200 / 24/2500 |
| Lifting Motor | V/W | 24/2200 |
| Packing Size | mm | 2780*990*1750 / 3180*1100*1780 |
| Packing Weight | kg | 1850 / 2080 |
| Front Wheel Size | mm | Φ466*195 (Pneumatic Tires) |
| Front Wheel Qty | pcs | 2 ( 2+2 Dual wheel optional) |
| Rear Wheel Size | mm | Solid Φ400*100 ( Pneumatic tires for optional) |
| Rear Wheel Qty | pcs | 2 |
| Pads Size | mm | Φ300 |
| Pads Qty | pcs | 6/8 |
